    BERT That Works on Browser

    May 22, 2020  |  6 min read  |  200 views

    • このエントリーをはてなブックマークに追加

    * This post is based on my previous presentation at “BERT Applications Seminar.” The slide is available here (in Japanese).

    As mentioned in an earlier post, BERT is well-known for its excellent performance on a variety of NLP tasks. When you try to use it on your device, however, you may find that it is too large to load on memory or it takes too long to infer as BERT-Base has as many as 100M parameters.

    MobileBERT [1] is a more handy version of BERT with the reduced parameters and inference time and, of course, the same performance. It even allows us to use it on a web browser! In a recent post by TensorFlow developers, they developed a prototype of the find-in-page search feature that takes questions as search queries [2]. Wouldn’t it be nice?

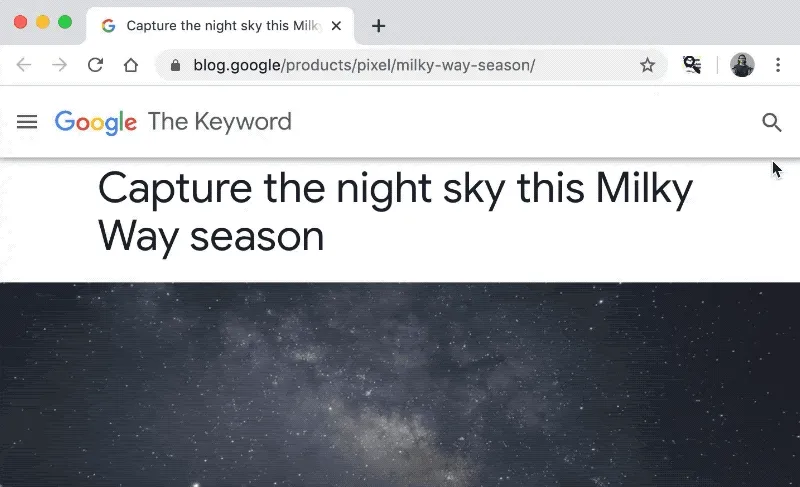

    Figure taken from [2]

    In this demo, the MobileBERT model works purely on the browser (or client side) without any communication (e.g. with a cloud server). How is it possible? Let’s find it out.

    MobileBERT Q&A Model

    Specifically, the MobileBERT model in the demo above is MobileBERT fine-tuned on a reading comprehension dataset called SQuAD 2.0. Each piece of data in SQuAD is a triplet of a passage, question, and answer. A question is posed on a passage from Wikipedia and the answer is a segment of text from the passage or <no answer>. Therefore, given a passage and a question, the model outputs some pairs of candidates and their score. For example,

    Passage: “Bert is Ernie’s best friend and roommate on Sesame Street. The pair share the basement apartment at 123 Sesame Street.”
    Question: “Where does Bert live?”

    Candidate Score
    123 sesame street 16.6
    123 sesame street . 12.8
    sesame street 11.4

    This demo is available here. Try it out!


    The authors of MobileBERT aimed to make BERT storage efficient and computationally efficient so that it works on edge devices. They report that a straightforward distillation results in a significant accuracy drop and they propose a novel training strategy.

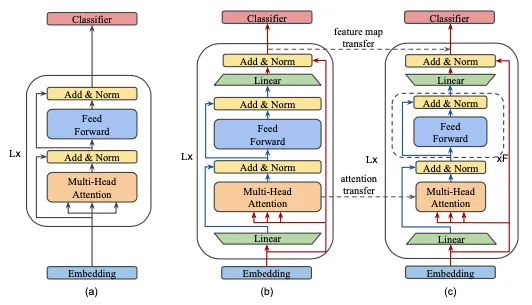

    2020 05 21 07 08 26

    Figure taken from [1]

    It requires a teacher model called (b) inverted bottleneck BERT (IB-BERT) and a student model called (c) MobileBERT. IB-BERT is as large as (a) BERT-Large but has a special architecture. MobileBERT has the same number of blocks and the same I/O size (hinter\boldsymbol{h}_{inter}) as IB-BERT, but the blocks are much smaller.

    Training Strategy

    While IB-BERT is trained just like BERT, MobileBERT is trained on a special strategy. First, the feature maps and attention are transferred from IB-BERT to MobileBERT by the progressive knowledge transfer (PKT). It forces the blocks of MobileBERT to behave the same way as those of IB-BERT by training block by block, from bottom to top. When training one block, the others are frozen.

    After training all the blocks by PKT, they are jointly trained by pre-training distillation (PD). It distills the knowledge of IB-BERT to MobileBERT on the original masked language modeling (MLM).

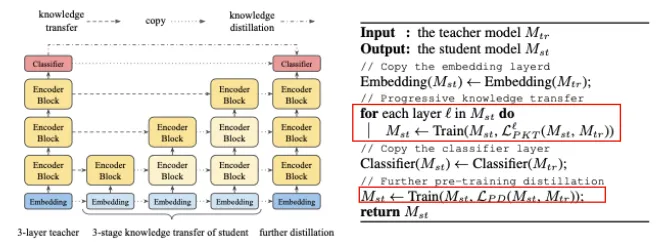

    2020 05 21 22 04 02

    Figure taken and modified from [1]

    These two training objectives together enable MobileBERT to copy IB-BERT as closely as possible.

    Model Architecture

    PKT imposes a restriction on the two models: they must have the same number of blocks and the same block I/O size (hinter\boldsymbol{h}_{inter}). On the other hand, MobileBERT is supposed to be small enough to work on edge devices and IB-BERT is supposed to be large enough to match the performance of the original BERT model.

    These two requirements are met by introducing the bottleneck architecture that separates the model width to inter-block width hinter\boldsymbol{h}_{inter} and intra-block width hintra\boldsymbol{h}_{intra}. The table below compares the hyperparameters of the models. MobileBERT has the same size of hinter\boldsymbol{h}_{inter} as IB-BERT but has a smaller hinter\boldsymbol{h}_{inter}, and its model size is 0.25 times smaller than that of IB-BERT.

    2020 05 21 22 29 15

    Figure taken and modified from [1]

    Experimental Results

    Empirical studies on GLUE benchmark and SQuAD dataset show that MobileBERT has comparable performance to BERT-Base and outperforms other compressed models, while its model size and latency are remarkably reduced.

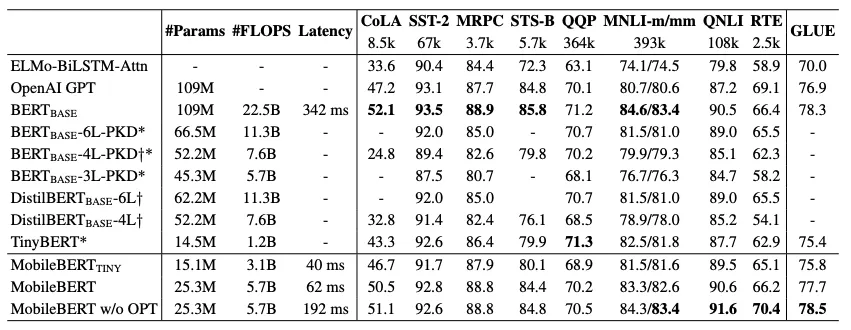

    2020 05 21 22 35 23

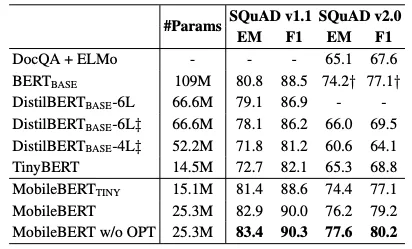

    2020 05 21 22 35 49

    * Note that IB-BERT is distilled from BERT-Large, not BERT-Base. MobileBERT does not outperform BERT-Large.
    * OPT refers to a MobileBERT variant without operational optimizations such as removing layer normalization. These optimizations hurt the model accuracy but accelerate inference.

    Differences from Previous Works

    You may recall that ALBERT [3] is also a successful compressed model of BERT. What is the difference between MobileBERT and ALBERT? This is not discussed in the MobileBERT paper [1], but the following figure gracefully answers the question:

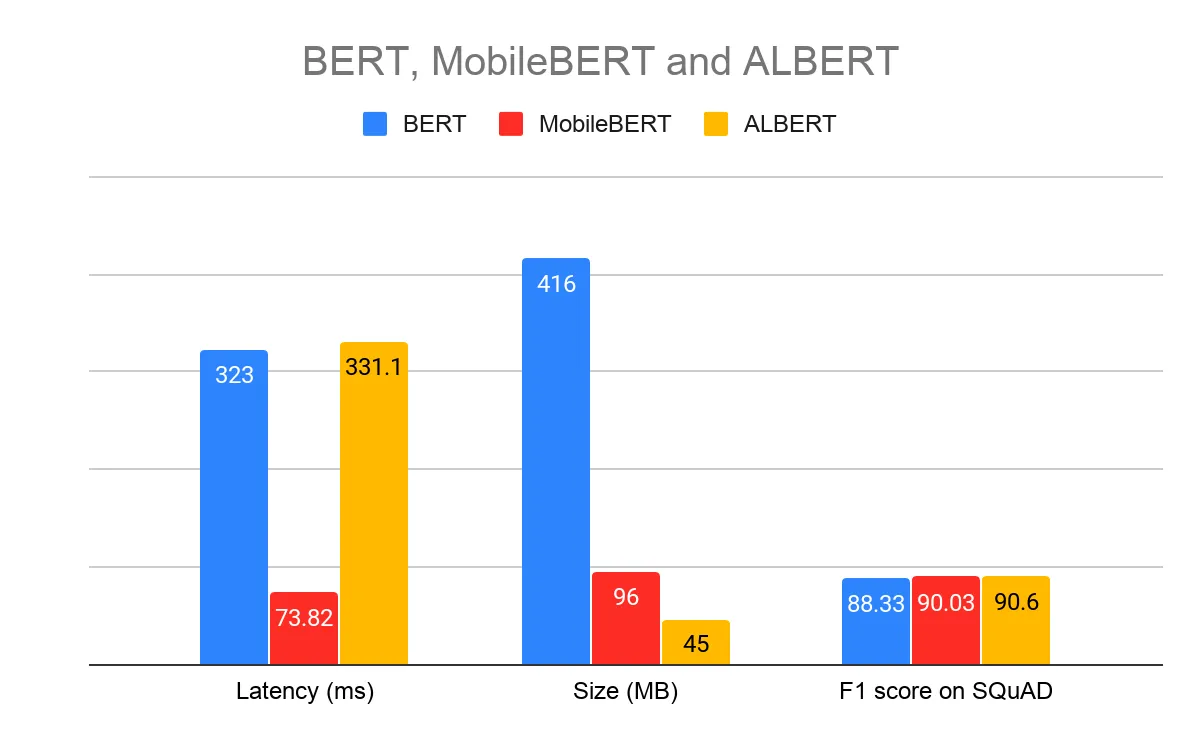

    2020 05 21 22 57 10

    Figure taken and modified from [4]

    ALBERT is smaller but far slower than MobileBERT!

    The authors also emphasize the differences of MobileBERT from previous works are: (1) MobileBERT solely relies on knowledge transfer and does not require any fine-tuned teacher model and (2) MobileBERT reduces the width of BERT rather than the depth, which was shown to be more effective.


    TensorFlow.js is a JavaScript library for using a machine learning model on browsers.

    Develop ML models in JavaScript, and use ML directly in the browser or in Node.js.


    • can use GPU easily via WebGL
    • can import trained models from TensorFlow and Keras
    • supports React Native

    The demo shown at the top uses the MobileBERT Q&A model implemented in TensorFlow.js. Actually, it is very easy to use. The model is loaded and called in the few lines of code:

      // Load the model.
      qna.load().then(model => {
        // Find the answers
        model.findAnswers(question, passage).then(answers => {
          console.log('Answers: ', answers);

    BERT is now more friendly to real-world applications. Let’s develop your app with BERT!


    [1] Zhiqing Sun, Hongkun Yu, Xiaodan Song, Renjie Liu, Yiming Yang, and Denny Zhou. “MobileBERT: a Compact Task-Agnostic BERT for Resource-Limited Devices.” ACL. 2020.
    [2] Exploring helpful uses for BERT in your browser with Tensorflow.js — The TensorFlow Blog
    [3] Zhenzhong Lan, Mingda Chen, Sebastian Goodman, Kevin Gimpel, Piyush Sharma, and Radu Soricut. ”ALBERT: A Lite BERT for Self-supervised Learning of Language Representations.” ICLR. 2020.
    [4] How TensorFlow Lite helps you from prototype to product — The TensorFlow Blog
