    Learning to Play Slime Volleyball with PFRL

    August 08, 2020  |  6 min read  |  377 views

    • このエントリーをはてなブックマークに追加

    Last month, Preferred Networks, Inc. (PFN) released a new PyTorch-based library for deep reinforcement learning (DRL), which is called PFRL. PFRL, which inherits ChainerRL, implements a comprehensive set of DRL algorithms from DQN to Soft Actor-Critic. Here is an official quickstart guide.

    In this post, I apply one of the PFRL’s algorithms to the Slime Volleyball game with the GPU instance of Colaboratory. My agent (the yellow slime) worked hard to play at first and kind of learned to play volleyball. It’s so adorable!


    Slime Volleyball

    Slime Volleyball is a simple volleyball-like game between two slimes (agents). Each agent initially has five lives, and lose one life if it fails to push the ball back to the opponent’s side. An agent receives +1 reward if its opponent loses and -1 if the agent loses a life.

    A Slime Volleyball environment with a Gym interface is provided by @hardmaru. There are several types of environments, but here I will use the simplest one with 12-dimensional observational space and 3-dimensional action space.

    Reinforcement Learning

    PFRL already has an official example of learning to play Slime Volleyball with a value-based algorithm called Rainbow [3]. So I tried a different one, a policy-based algorithm called proximal policy optimization (PPO).

    I did the entire experiment on Colaboratory as found here. Some additional packages are required to render videos on Colab notebooks:

    ! apt-get -y install libcusparse8.0 libnvrtc8.0 libnvtoolsext1 > /dev/null
    ! ln -snf /usr/lib/x86_64-linux-gnu/libnvrtc-builtins.so.8.0 /usr/lib/x86_64-linux-gnu/libnvrtc-builtins.so
    ! apt-get -y install xvfb freeglut3-dev ffmpeg> /dev/null

    ! pip install gym
    ! pip install pyglet
    ! pip install pyopengl
    ! pip install pyvirtualdisplay
    ! pip install pfrl
    ! pip install slimevolleygym==0.1.0

    Next, define the environment and the PPO agent. The agent is modeled by a simple 3-layer neural network. For more details, see the official example and the official document.

    import argparse

    import gym
    import gym.spaces
    import torch
    from torch import nn
    import numpy as np
    import matplotlib.pyplot as plt
    import pandas as pd
    import pfrl
    from pfrl import agents
    from pfrl import experiments
    from pfrl import utils
    from pfrl.policies import SoftmaxCategoricalHead
    import slimevolleygym

    class MultiBinaryAsDiscreteAction(gym.ActionWrapper):
        """Transforms MultiBinary action space to Discrete.
        If the action space of a given env is `gym.spaces.MultiBinary(n)`, then
        the action space of the wrapped env will be `gym.spaces.Discrete(2**n)`,
        which covers all the combinations of the original action space.
        Args:
            env (gym.Env): Gym env whose action space is `gym.spaces.MultiBinary`.
        """

        def __init__(self, env):
            super().__init__(env)
            assert isinstance(env.action_space, gym.spaces.MultiBinary)
            self.orig_action_space = env.action_space
            self.action_space = gym.spaces.Discrete(2 ** env.action_space.n)

        def action(self, action):
            return [(action >> i) % 2 for i in range(self.orig_action_space.n)]

    def main():
        parser = argparse.ArgumentParser()
        parser.add_argument(
            "--outdir",
            type=str,
            default="results",
            help=(
                "Directory path to save output files."
                " If it does not exist, it will be created."
            ),
        )
        parser.add_argument("--seed", type=int, default=8, help="Random seed [0, 2 ** 32)")
        parser.add_argument("--steps", type=int, default=3e6)
        parser.add_argument("--eval-n-episodes", type=int, default=1000)
        parser.add_argument("--eval-interval", type=int, default=250000)
        parser.add_argument(
            "--log-level",
            type=int,
            default=20,
            help="Logging level. 10:DEBUG, 20:INFO etc.",
        )
        args = parser.parse_args(args=[])

        import logging

        logging.basicConfig(level=args.log_level)

        # Set a random seed used in PFRL.
        utils.set_random_seed(args.seed)

        # Set different random seeds for train and test envs.
        train_seed = args.seed
        test_seed = 2 ** 31 - 1 - args.seed

        args.outdir = experiments.prepare_output_dir(args, args.outdir)
        print("Output files are saved in {}".format(args.outdir))

        def make_env(test):
            env = gym.make("SlimeVolley-v0")
            # Use different random seeds for train and test envs
            env_seed = test_seed if test else train_seed
            env.seed(int(env_seed))
            env = pfrl.wrappers.Monitor(
                env, args.outdir, mode="evaluation" if test else "training"
            )
            if isinstance(env.action_space, gym.spaces.MultiBinary):
                env = MultiBinaryAsDiscreteAction(env)
            return env

        env = make_env(test=False)
        eval_env = make_env(test=True)

        obs_size = env.observation_space.low.size
        n_actions = env.action_space.n

        def phi(x):
            # Feature extractor
            return np.asarray(x, dtype=np.float32)

        hidden_size = 64
        model = nn.Sequential(
            nn.Linear(obs_size, hidden_size),
            nn.ReLU(),
            nn.Linear(hidden_size, hidden_size),
            nn.ReLU(),
            pfrl.nn.Branched(
                nn.Sequential( # pi
                    nn.Linear(hidden_size, n_actions),
                    SoftmaxCategoricalHead(),
                ),
                nn.Linear(hidden_size, 1), # v
            ),
        )

        opt = torch.optim.Adam(model.parameters(), lr=3e-4, eps=1e-5)
        update_interval = 4096

        agent = agents.PPO(
            model,
            opt,
            gamma=0.99,
            gpu=0,
            phi=phi,
            update_interval=update_interval,
            minibatch_size=64,
            epochs=10,
            clip_eps=0.2,
            clip_eps_vf=None,
            standardize_advantages=True,
            entropy_coef=0,
            max_grad_norm=0.5,
        )


        experiments.train_agent_with_evaluation(
            agent=agent,
            env=env,
            steps=args.steps,
            eval_n_steps=None,
            eval_n_episodes=args.eval_n_episodes,
            eval_interval=args.eval_interval,
            outdir=args.outdir,
            save_best_so_far_agent=True,
            eval_env=eval_env,
        )

    main()

    Result

    I trained my PPO agent for 2.75M steps and obtained the following learning curve.

    2020 08 09 08 13 22

    My agent seems to have learned a good policy, but the average reward converged between -2 and -1. A careful look at the video above shows that after the 1.5M step, the agent repeatedly tries to lift the ball just to spend time. I think this happened because the agent didn’t receive enough positive rewards. It couldn’t even know that there was a positive reward, so it tried its best not to receive a negative reward. How to get out of this locally optimum policy? I leave it to a future post😉

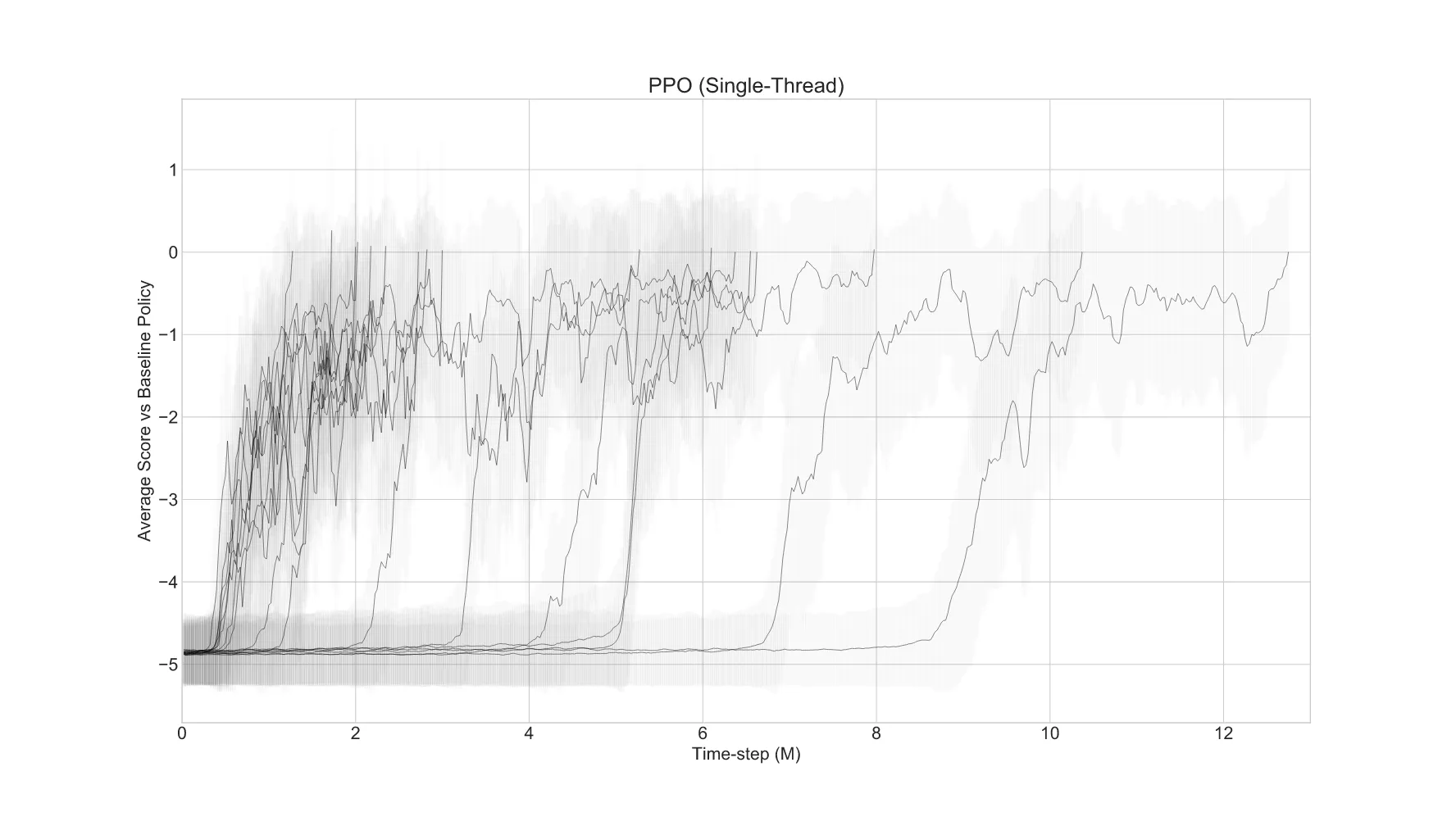

    Also, it is worth noting that the random seed for initializing the network does matter. The author of the Slime Volleyball environment trained the PPO agent 17 times with different random seeds and got significantly different learning curves! The best agent reached the average score of 0 at around 1.2M timesteps, and the worst one took more than 12M timesteps to reach the same level.

    2020 08 08 18 32 34

    Image from [4]

    The author explains this phenomenon by the analogy of an infant learning to play volleyball against a professional player. If the initial randomized agent is bad, it simply receives the minimum reward and the agent takes longer to learn something from the environment. On the other hand, if the initial randomized agent is good, it can receive a reward higher than the minimum amount by a luck and it can learn which policy is good or bad. So, learners need teachers appropriate for their level. Reinforcement learning teaches us a lot about ourselves!

    References

    [1] Preferred Networks Releases PFRL Deep Reinforcement Learning Library for PyTorch Users | Preferred Networks, Inc.
    [2] Matteo Hessel, Joseph Modayil, Hado van Hasselt, Tom Schaul, Georg Ostrovski, Will Dabney, Dan Horgan, Bilal Piot, Mohammad Azar, David Silver. Rainbow: Combining Improvements in Deep Reinforcement Learning. AAAI. 2018.
    [3] John Schulman, Filip Wolski, Prafulla Dhariwal, Alec Radford, Oleg Klimov. Proximal Policy Optimization Algorithms. 2017.
    [4] slimevolleygym/TRAINING.md at master · hardmaru/slimevolleygym
    [5] 【強化学習】OpenAI Gym×Keras-rlで強化学習アルゴリズムを実装していくぞ(準備編) - Qiita
    [6] How to take screen number? · Issue #54 · ponty/PyVirtualDisplay
