    Meet Pandas: Converting DataFrame to CSR Matrix

    March 08, 2022  |  3 min read  |  318 views

    • このエントリーをはてなブックマークに追加

    Welcome back to the 🐼Meet Pandas🐼 series (a.k.a. my memorandum for learning Pandas)!

    When working with big data, we often encounter interactions between users and items. Examples of such data include:

    • User ratings of movies, restaurants, or marchandise
    • Number of times a song or video is played by each user

    Representing these data as a dense matrix, where each row represents a user and each column represents an item, can lead to prohibitively large memory consumption. And, since interaction data are usually sparse, there must be more efficient ways to store the data. In such cases, representing the data as a sparse matrix is a good choice.

    In this post, I will briefly show how to convert a DataFrame of user-item interactions to a compressed sparse row (CSR) matrix, the most common format for sparse matrices.

    Load Example Data

    As an example, we use the MovieLens dataset provided here. This is a collection of rmovie ratings by users. Movies are rated by a small fraction of users, so this is a perfect use case for a sparse matrix. MovieLens can be loaded by the following code:

    from urllib.request import urlretrieve
    import zipfile

    import pandas as pd

    urlretrieve("http://files.grouplens.org/datasets/movielens/ml-100k.zip", "movielens.zip")
    zip_ref = zipfile.ZipFile('movielens.zip', "r")
    zip_ref.extractall()

    df = pd.read_csv(
        'ml-100k/u.data', sep='\t', names=['user_id', 'movie_id', 'rating', 'timestamp'], encoding='latin-1'
    )
    df

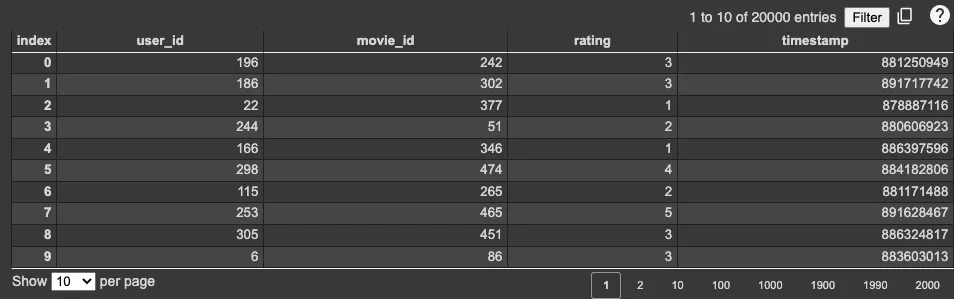

    The dataframe should look something like this (a screenshot from Colaboratory):

    2022 03 06 18 03 54

    Converting to CSR Matrix

    To convert a DataFrame to a CSR matrix, you first need to create indices for users and movies. Then, you can perform conversion with the sparse.csr_matrix function. It is a bit faster to convert via a coordinate (COO) matrix.

    from pandas.api.types import CategoricalDtype
    from scipy import sparse

    users = df["user_id"].unique()
    movies = df["movie_id"].unique()
    shape = (len(users), len(movies))

    # Create indices for users and movies
    user_cat = CategoricalDtype(categories=sorted(users), ordered=True)
    movie_cat = CategoricalDtype(categories=sorted(movies), ordered=True)
    user_index = df["user_id"].astype(user_cat).cat.codes
    movie_index = df["movie_id"].astype(movie_cat).cat.codes

    # Conversion via COO matrix
    coo = sparse.coo_matrix((df["rating"], (user_index, movie_index)), shape=shape)
    csr = coo.tocsr()

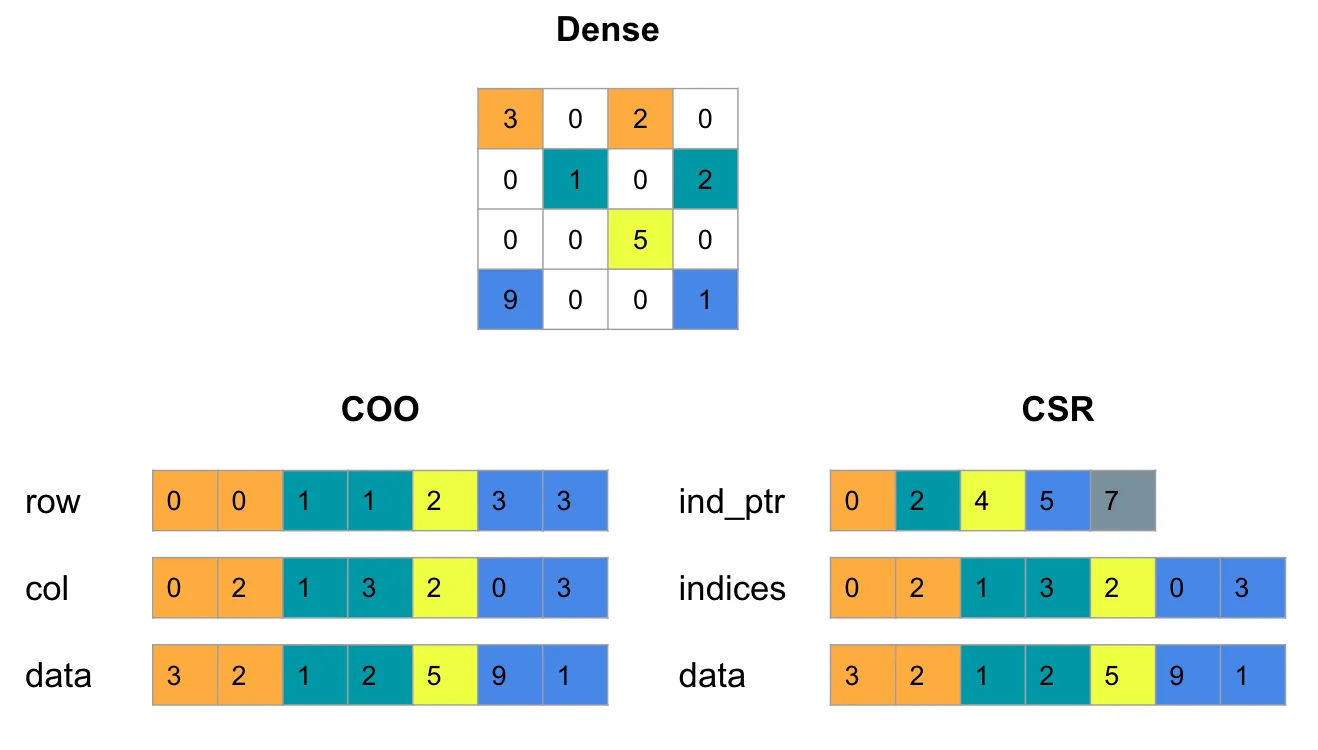

    For your information, I compare a dense matrix and its COO and CSR format in the figure below:

    2022 03 07 00 19 02

    CSR format consumes far less memory than its dense format for sparse matrices. Also, SciPy’s CSR matrix is compatible with many other libraries such as scikit-learn and XGBoost. For a more detailed explanation about sparse matrices, I refer readers to this post.

    CSR matrix can be converted back to COO matrix by .tocoo() method and to dense matrix by todense().

    References

    [1] scipy.sparse.csr_matrix — SciPy v1.8.0 Manual
    [2] Python, SciPy(scipy.sparse)で疎行列を生成・変換 | note.nkmk.me
    [3] scipy.sparseで疎行列入門 - Qiita
